AGM Clarion 384 Dual-Focus Thermal Scope 25/50mm 50Hz

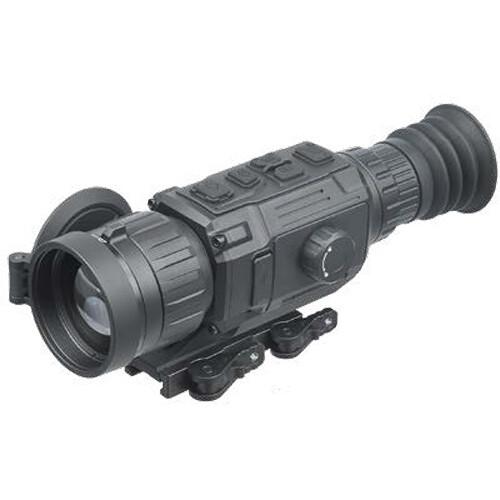

The AGM Clarion 384 Dual-Focus is a thermal imaging riflescope that provides selectable 25 mm or 50 mm objectives to change base magnification and field of view without degrading image resolution. It uses a 384x288, 12 µm thermal sensor and a 50 Hz refresh rate for continuous imaging. Built-in recording, Wi‑Fi connectivity, and internal storage allow capture and transfer of video and images during field use.

Key Specifications

• The objective lens is a dual-focus system offering 25 mm / 50 mm options to alter base magnification and field of view.
• The thermal detector is a 384x288, 12 µm sensor for mid-resolution thermal imaging.
• The imaging refresh rate is 50 Hz for smooth live video.
• The optical and digital magnification is specified as 2–16x / 4.5–36x in manufacturer materials.
• The field of view is listed as 10.50° x 7.90° / 5.30° x 4.0° for the 25 mm and 50 mm settings respectively.
• The eyepiece/display is a 1024 x 768 OLED screen for image presentation.
• The unit includes 16 GB eMMC built-in storage for recorded video and images.
• The scope supports onboard video and audio recording and wireless data transfer via Wi‑Fi.
• The system offers 10 internal reticle options with multiple color palettes and display presets.

The Clarion 384's dual-lens concept provides practical flexibility for observation and target identification across varied terrain and engagement distances. Its combination of a responsive thermal sensor, selectable optics, and integrated recording and connectivity features makes it suitable for prolonged field use where imaging versatility and data capture are priorities.
