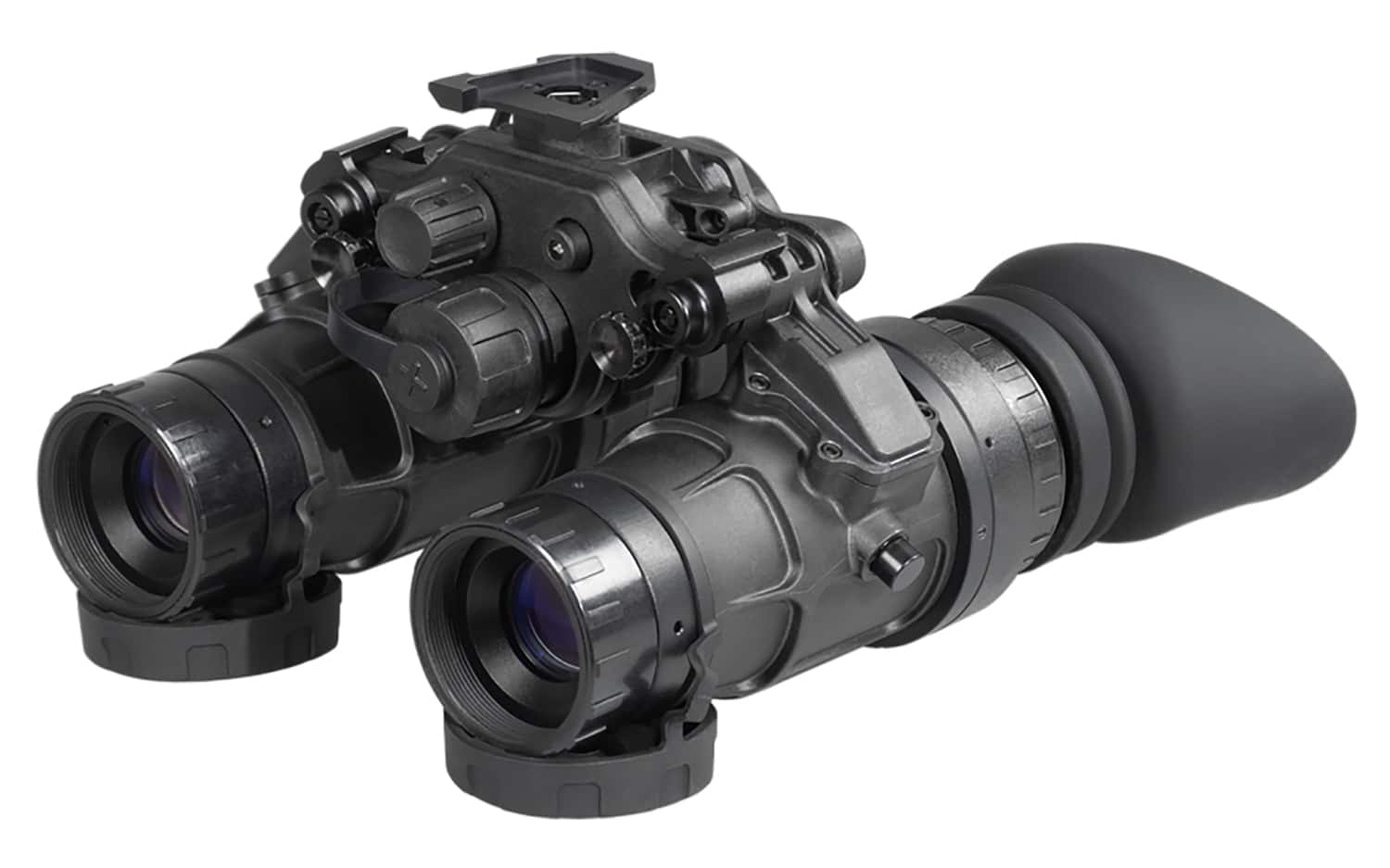

AGM UNVG-51 NW1 Night Vision Goggles 1x 51-64 lp/mm

The AGM UNVG-51 NW1 is a compact, dual-channel night vision goggle system designed for flexible low-light observation and field use. It uses multi-coated optics to deliver an expanded field of view and can be equipped with a Gen 2+ white phosphor intensifier tube. Manual gain control and independently adjustable tube pods allow single- or dual-eye configurations for operational flexibility in changing light conditions.

Key Specifications

• The magnification is 1x for a natural, unaided perspective.
• The resolution is 51-64 lp/mm for high-detail imaging in low light.
• The field of view measures 51 Degrees for broad situational awareness.
• The intensifier tube is Gen 2+ White Phosphor Level 1 as configured.
• The battery life is 15-50 hrs depending on use and whether the external pack is employed.
• The battery size accepts AA/CR123A formats for flexible power options.
• The device weight is 1.20 lbs for wearable balance and maneuverability.
• The diopter adjustment range is -6/+2 to accommodate user vision differences.
• The focus range covers 0.25m to Infinity for both near and distant subjects.
• The unit includes an integral infrared illuminator listed as Yes for close-range scene illumination.

The UNVG-51 NW1 ships with an external battery pack, connecting cable with adapter, demist shields, sacrificial windows, neck strap, carry case, lens cloth, and user manual to support extended missions and routine maintenance. Its compact composite housing, manual gain control, and modular mounting options make it a practical choice for field observation, security work, and professional low-light tasks where reliable, high-clarity night vision is required.
