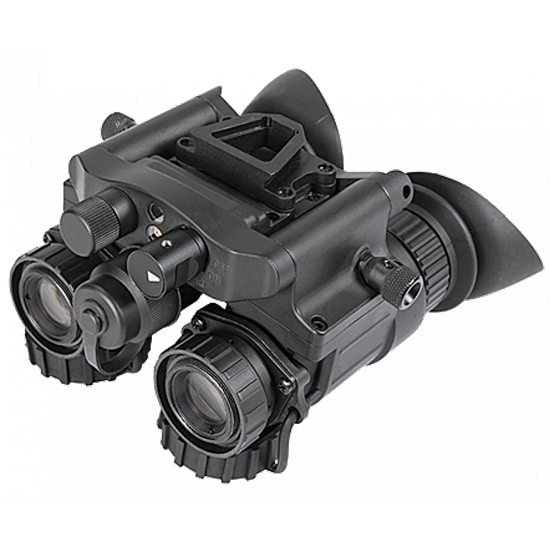

AGM NVG-50 3AW1 DUAL NIGHT VISION GOGGLE/BINO

The AGM NVG-50 3AW1 is a dual-channel night vision goggle and binocular system designed for stereoscopic observation and hands-free operation. It uses Gen 3 auto-gated white phosphor image intensifier technology and provides a wide 51° field of view to maximize situational awareness. The unit is compact, head- or helmet-mountable, and includes an integrated infrared illuminator with two power levels for low-light tasks.

Key Specifications

• The image intensifier uses Gen 3 Auto-Gated White Phosphor Level 1 tubes.
• The resolution is 64–72 lp/mm.
• The field of view is 51° for broad visual coverage.
• The basic magnification is 1x (with 3x optional available).
• The lens system is 19 mm; F/1.26.
• The focus range extends from 0.25 m to infinity.
• The eye relief is 17 mm.
• The diopter adjustment range is -6 to +2 dpt.
• The unit uses one CR123A (3V) or one AA (1.5V) battery.
• Battery life is up to 20 hours at 20°C (up to 80 hours with optional battery pack).

Rugged and purpose-built, the NVG-50 3AW1 suits observation, low-light navigation, and training roles where reliable, stereoscopic night vision is required. Its combination of Gen 3 imagery, wide field of view, and helmet/head-mount compatibility makes it a practical choice for professionals and serious users who need dependable performance in extended operations.
