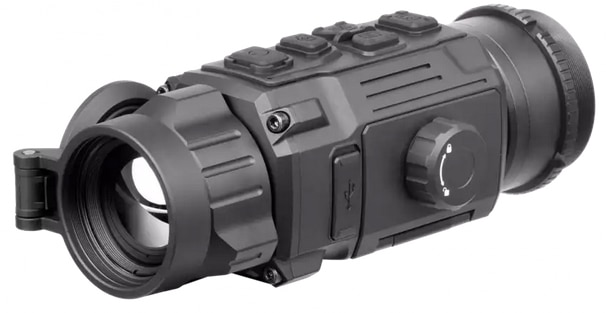

AGM Rattler-C V2 35-384 Thermal Clip-On 35mm 384×288
$2,217.99
5 in stock
The AGM Rattler-C V2 is a compact thermal clip-on system designed to convert compatible daytime optics into a thermal imaging device without special tools. It uses a high-sensitivity 12 micron detector and presents imagery on a high-resolution OLED monitor for clear imaging in low-light and limited-visibility conditions. The unit is intended for use on scopes up to 8x magnification for medium-range observation and includes onboard recording and wireless connectivity.
Key Specifications
- The detector resolution is 384x288 with a 12 micron pixel pitch and a 50 Hz refresh rate.
- The objective lens measures 35mm.
- The optical magnification is 1x.
- The field of view is 7.50 x 5.60 degrees.
- The focus range is listed as 2mm to Infinity.
- The listed battery life is Up to 11 hrs.
- The product weight is 1.19 lbs.
- Onboard storage is 16 GB EMMC for video and image capture.
- The display is a 1024x768 OLED monitor.
- Package contents include mount, two rechargeable batteries, charger, USB cable, lens cloth, manual, and carrying case.
Designed for practical, no-nonsense field use, the Rattler-C V2 combines a sensitive thermal sensor, integrated recording and Wi‑Fi, and a simple clip-on mounting approach to extend the capability of compatible day optics. Its feature set supports extended observation sessions and documented imaging while minimizing setup time in the field.
Additional information
| upc | 810164390158 |
|---|---|
| Manufacturer | AGM Global Vision |
| Manufacturer Part Number | 314205560205R561 |
| Focus Range | 2mm to Infinity |
| Length | 14.7500 |
| Magnification | 1x |
| Resolution | 384×288, 12 Microns, 50 Hz |
