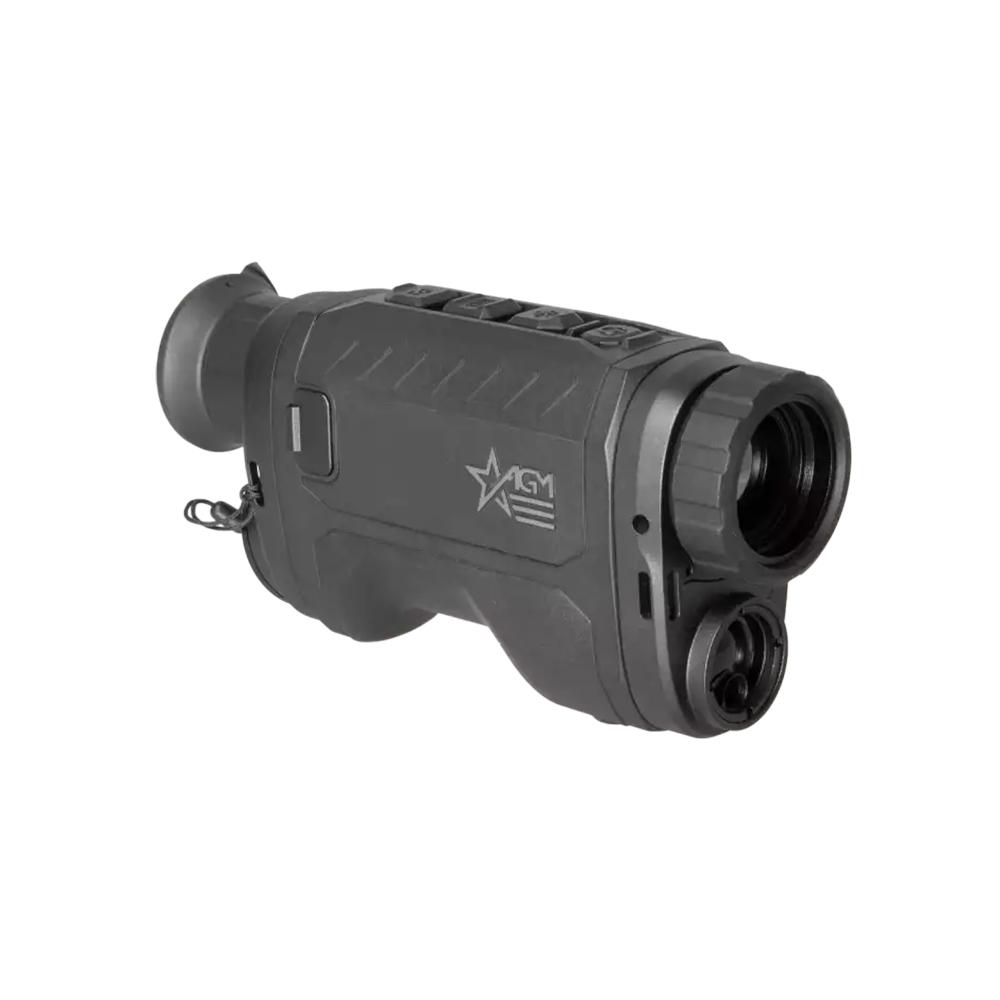

AGM ReachIR LRF 25-384 Thermal Monocular 25mm 384×288

The AGM ReachIR LRF 25-384 is a handheld thermal monocular designed for observational use in field and tactical contexts. It pairs a 25mm objective with a 384×288, 12‑micron thermal sensor and a 1024×768 OLED display to deliver clear thermal imagery. The unit includes a removable 18650 rechargeable battery and robust, weather‑resistant construction suitable for outdoor use. Built-in recording, internal storage and wireless connectivity support documentation and situational awareness.

Key Specifications

• The objective lens measures 25mm for a compact optical profile.
• The thermal sensor is a 384×288, 12‑micron detector for mid-resolution thermal imaging.
• The imaging system operates at a 50 Hz frame rate for smooth scene updates.
• The eyepiece/display uses a 1024×768 OLED screen for image rendering.
• The optical zoom range is 2.5–20× for variable observation distances.
• The unit includes a built-in laser rangefinder to support target distance estimation.
• Internal storage provides 64 GB of built-in memory for images and recordings.
• Power is provided by a replaceable 18650 Li‑ion rechargeable battery.
• The chassis is a robust magnesium alloy housing with waterproofing for field use.
• The listed weight is 3.571.

The ReachIR LRF 25-384 combines practical thermal imaging features with a compact, serviceable design for a wide range of outdoor and professional uses. Its balance of magnification, sensor performance, onboard recording and durable construction makes it suitable for observers who require reliable thermal capability in varied environments.
