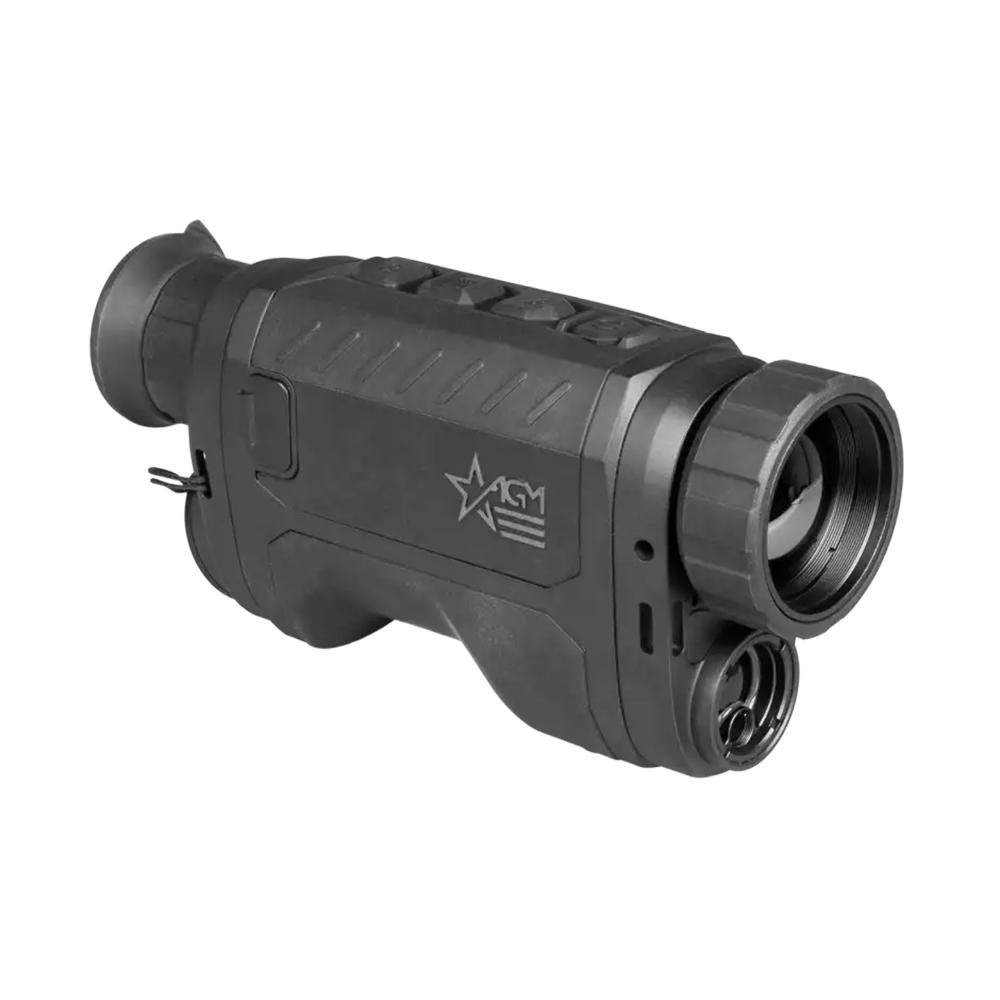

AGM ReachIR LRF 35-640 Thermal Monocular 35mm 640×512

The AGM ReachIR LRF 35-640 is a handheld thermal monocular designed for observational and detection tasks. It pairs a 640x512 thermal sensor with a high-resolution OLED display and onboard recording to support extended field use. The unit includes an integrated laser rangefinder and rechargeable 18650 battery for mission-flexible operation.

Key Specifications

• The model is ReachIR LRF 35-640 from AGM Global Vision.
• The optics type is thermal for passive infrared observation.
• The objective lens measures 35 mm.
• The sensor and output are 640x512 at 50 Hz.
• The magnification range is 2–16x.
• The display is a 1024x768 OLED for high-detail rendering.
• It includes a 1000-meter integrated laser rangefinder.
• Onboard storage is 64 GB built-in memory for images and video.
• Wireless functionality is provided via a Wi‑Fi hotspot.
• The power source is a 18650 Li‑ion rechargeable battery.

The ReachIR LRF 35-640 combines a sensitive thermal sensor and a detailed OLED view for dependable detection and documentation in low-light or no-light conditions. Its integrated rangefinder, substantial onboard storage and wireless features make it well suited for observational work, field surveys, and search tasks where portable, reliable thermal imaging and recording are required.
