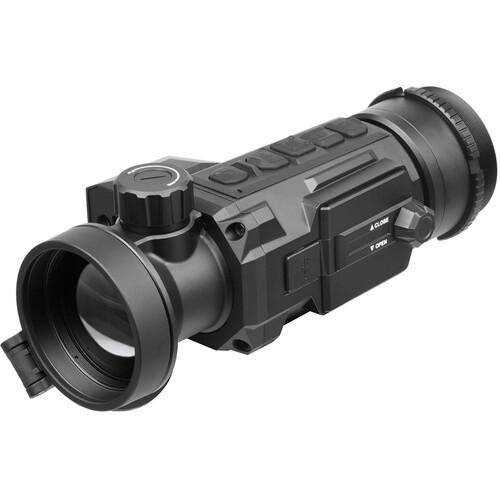

AGM Secutor LRF-C 50-640 Thermal Clip-On 640×512 50mm

The AGM Secutor LRF-C is a compact thermal imaging clip-on system with an integrated laser rangefinder that converts daytime optics into a thermal-capable observation device without tools. It pairs a 50mm objective with a 640x512 sensor and a 12 μm thermal detector to deliver usable thermal imagery in challenging conditions. The unit includes a high-resolution OLED monitor and supports on-board recording, Wi‑Fi streaming and external power via USB-C.

Key Specifications

• Image resolution is 640x512 for detailed thermal imaging.
• Objective lens measures 50mm to match medium-range optics.
• Detector pixel pitch is 12 μm for high thermal sensitivity.
• Field of view is 8.80 x 7 degrees for focused observation.
• Optical magnification is 1x when used as a clip-on unit.
• Display is a 1024x768 OLED monitor for clear on-screen output.
• Imaging refresh rate runs at 50 Hz for smooth motion depiction.
• Battery endurance exceeds more than 6 hours with four replaceable Li‑ion cells.
• Includes a built-in laser rangefinder for distance measurement displayed on the monitor.
• Device weight is 1.38 lbs for a balance of durability and portability.

Engineered for users who add thermal capability to existing optics, the Secutor LRF-C combines thermal imaging, ranging and onboard recording in a compact, weather-resistant package. Its external power support, Wi‑Fi streaming and rugged construction make it well suited for extended field use where reliable thermal observation and distance measurement are required.
