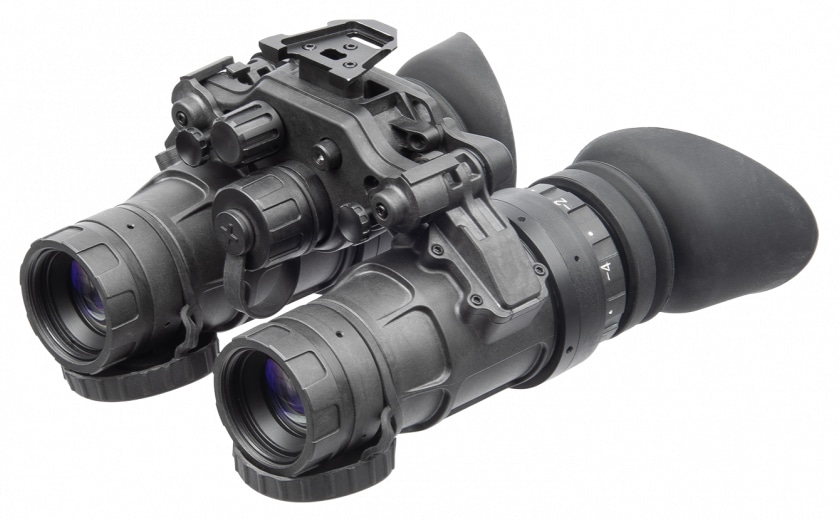

AGM UNVG NW1 GEN2 NIGHT VISION GOGGLES

The AGM UNVG NW1 is a dual-channel night vision system built with multi-coated optics and a compact composite housing for durable field use. It supports Gen 2+ (and Gen 3 where specified) image intensifier tubes, includes manual gain control for changing light conditions, and has independent flip-up pods for single- or dual-eye configurations. The system runs from a single AA battery for portable operation and ships with an external battery pack to extend runtime.

Key Specifications

• The image intensifier tube is Gen 2+ White Phosphor Level 1.
• The magnification is 1x.
• The lens system is 25 mm, F/1.23.
• The resolution is 64–72 Ip/mm.
• The battery life is 15–50 hrs depending on power source.
• The battery size supported is AA/CR123A.
• The focus range is 0.25 m to Infinity.
• The weight is 1.10 lbs.
• Includes an integral infrared illuminator for close-range visibility in total darkness.
• Features flip-up auto-off so each tube turns off when stowed.

Configured for flexibility and extended runtime with the included external battery pack, the UNVG NW1 is appropriate for users who need compact, configurable night vision for operational, training, and field tasks. Its combination of manual gain control, rugged housing, and PVS-14-style compatibility make it a practical choice for applications where reliable low-light capability and durable construction are important.
