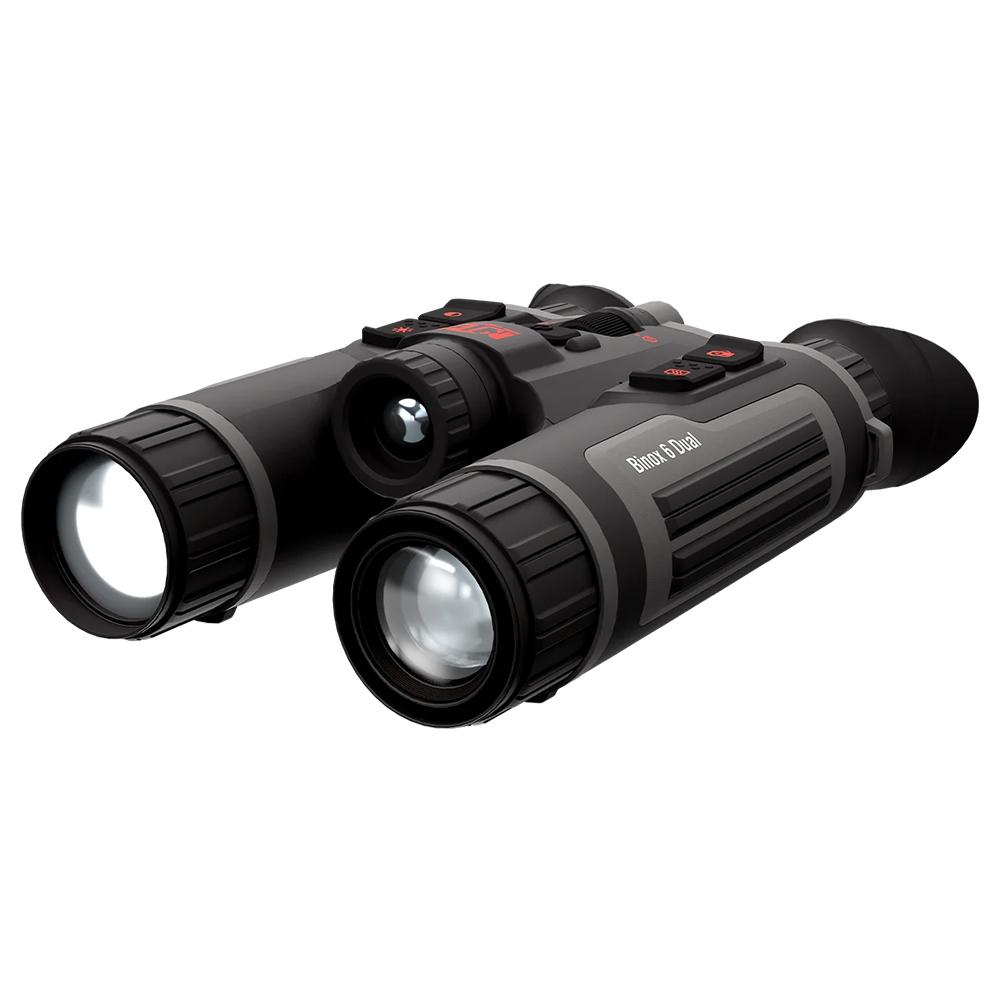

ATN Binox 6 Dual 384×288 Thermal Binoculars w/ LRF

The ATN Binox 6 Dual is a multispectral binocular system that pairs a thermal imaging channel with a 4K Ultra HD day/night optical channel and an integrated laser rangefinder. It supports multiple viewing modes including Day, Night, Thermal and Twilight, and records images and video to onboard storage for later review. Built for extended field use, the unit accepts replaceable rechargeable batteries and supports external USB-C power.

Key Specifications

• The thermal sensor resolution is 384×288.
• The thermal lens is 35 mm, F/0.9.
• The day channel sensor is 3840×2160 Ultra HD (4K).
• Digital zoom options include 1×, 2×, 4×, 8×.
• The laser rangefinder has an effective range of 1000 m with an accuracy of ±1 m and uses a 905 nm Class 1 laser.
• The display is a 0.49" OLED at 1920×1080 resolution.
• Internal storage capacity is 64 GB.
• Power is supplied by 2 × 18650 rechargeable batteries and the unit supports external USB Type-C power (5 VDC / 2A).
• The unit weighs 720 g (1.59 lbs) and is constructed with a magnesium-alloy body.
• The binoculars carry an ingress protection rating of IP67 and operate from -30°C to 55°C (-22°F to 131°F).

The Binox 6 Dual is designed for operators who need adaptable, multispectral observation without changing optics. Its combination of thermal detection, 4K day/night imaging, onboard recording and an integrated laser rangefinder makes it suitable for extended field work, scouting and general observation where versatility and data capture are priorities.
