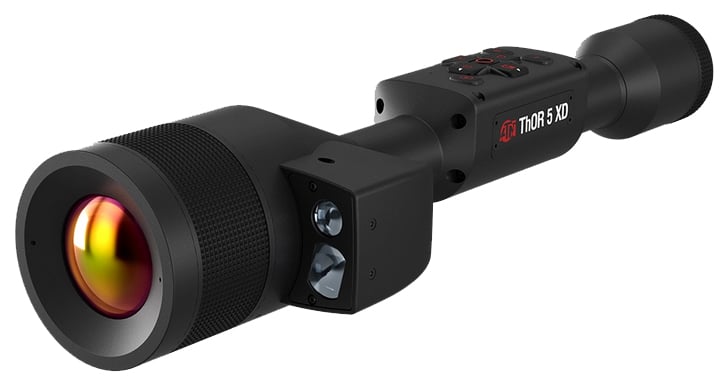

ATN Thor 5 XD LRF 2-20x Thermal Scope 1280×1024

The ATN Thor 5 XD LRF is a Gen 5 thermal rifle scope designed for precision observation and range measurement in low-light and no-light conditions. It combines a high-definition thermal sensor with a built-in laser rangefinder and integrated ballistic calculator to support measured, repeatable engagement decisions. The scope offers variable magnification and a compact profile intended for use on standard 30 mm rings.

Key Specifications

• Magnification range is 2-20x to cover close-to-long observation distances.
• Thermal sensor resolution is 1280x1024, 12 micron and operates at 60 fps for fluid imagery.
• Optical tube diameter is 30 mm for standard ring mounting.
• Field of view is 17.60 x 13.20 degrees for the stated zoom range.
• Battery system uses a 18650 Li-ion rechargeable cell with 10+ hrs reported run time.
• The unit includes a built-in laser rangefinder (LRF) for distance measurement and ballistic solutions.
• An internal ballistic calculator assists with holdover and ranging inputs.
• Reticle options include multiple patterns and colors and a custom reticle editor.
• Video capability records at 1280 @ 60 fps and supports streaming to iOS and Android devices.
• Generation and processing are listed as Gen 5 with Quad Core for sensor and image handling.

Compact and feature-rich, the Thor 5 XD LRF brings high-resolution thermal imaging, rangefinding, and digital tools into a single optic package suited to precision observation and long-range applications. Its combination of a sensitive HD sensor, variable magnification, integrated ballistic tools, and digital connectivity makes it appropriate for users who require advanced situational awareness and measurement capability in a weather-resistant design.
