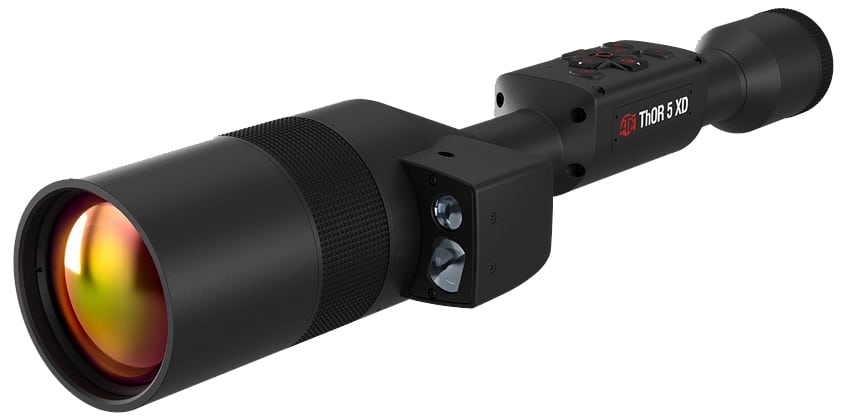

ATN Thor 5 XD LRF Thermal Scope 4-40x 1280×1024

The ATN Thor 5 XD LRF is a high-resolution thermal rifle scope designed for long-range observation and precision optics applications. It combines a 1280x1024 12-micron thermal sensor with ATN's Gen V processing, a built-in laser rangefinder, and digital features such as video recording, Wi‑Fi streaming, and a reticle editor. The unit mounts on a standard 30 mm tube and is supplied in a black finish.

Key Specifications

• Magnification range offers 4-40x for versatile observation and target acquisition.
• Thermal sensor delivers 1280x1024 resolution with a 12 µm pixel pitch.
• Image update rate runs at 60 fps for smooth thermal imagery.
• Processing is handled by the ATN Gen V Quad Core platform.
• Includes an integrated laser rangefinder (LRF) for distance measurement.
• Tubed design fits 30 mm rings or mounts compatible with 30 mm tube systems.
• Power is supplied by 18650 Li‑ion rechargeable batteries with 10+ hrs typical runtime.
• Reticle system supports multiple patterns & colors and a user reticle editor.
• Video features include 1280x720/1280x? @ 60 fps streaming/recording and Recoil Activated Video (RAV).
• Connectivity options include Wi‑Fi (streaming & gallery) and Bluetooth for mobile control.

The Thor 5 XD LRF brings modern thermal imaging, digital processing, and rangefinding into a single, durable package suitable for observation, long-range spotting, and field optics tasks. Its combination of high-resolution sensor, smooth frame rate, and integrated digital tools provides a capable platform for users who need dependable thermal performance and flexible digital features in a compact 30 mm tube form factor.
