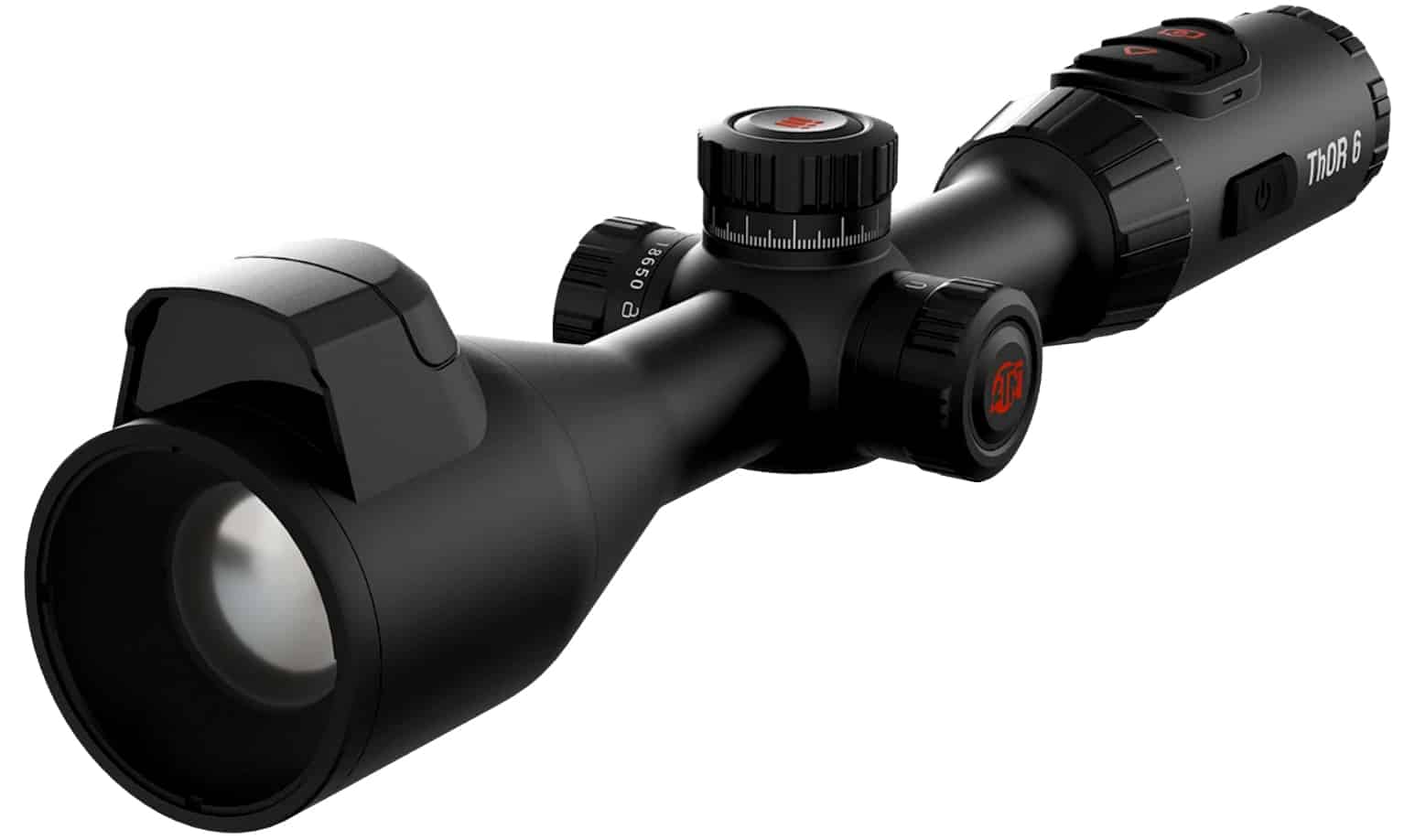

ATN ThOR 6 Elite 2-16x Thermal Scope 640×512 LRF

The ATN ThOR 6 Elite is a thermal riflescope designed for observation, distance measurement, and practical field use in low‑light or obscured conditions. It integrates a 640×512 thermal sensor with a 35 mm F/1.0 lens, a built‑in laser rangefinder, and ballistic calculation tools to support accurate aiming and data capture. Features such as onboard video recording, Wi‑Fi connectivity, and rugged magnesium alloy construction make it suited to extended outdoor use.

Key Specifications

• Sensor resolution is 640×512 for detailed thermal imaging.
• Magnification ranges from 2–16× with step and smooth zoom.
• Objective lens is a 35 mm F/1.0 optic designed for thermal collection.
• Detector type is a 12 µm VOx uncooled focal plane array with 15 mK NETD sensitivity.
• Refresh rate is 50 Hz for responsive on‑screen motion.
• Digital zoom options include 1×, 2×, 4×, and 8×.
• Built‑in laser rangefinder has a stated range of 1000 m with ±1 m accuracy.
• Display uses a 0.49-inch OLED at 1920×1080 resolution for the internal image presentation.
• Power system supports internal and replaceable 18650 cells and external USB‑C power (5 VDC / 2 A); battery life is listed at approximately ~9 hrs.
• Construction is magnesium alloy with an IP67 rating and mounts to 30 mm rings.

With integrated ranging, recording, and wireless connectivity, the ThOR 6 Elite consolidates imaging and targeting tools into a single rugged package for extended field use. Its combination of a high‑resolution thermal sensor, flexible magnification, and onboard ballistic features makes it well suited to tasks that require reliable observation and measurement in low‑visibility conditions.
