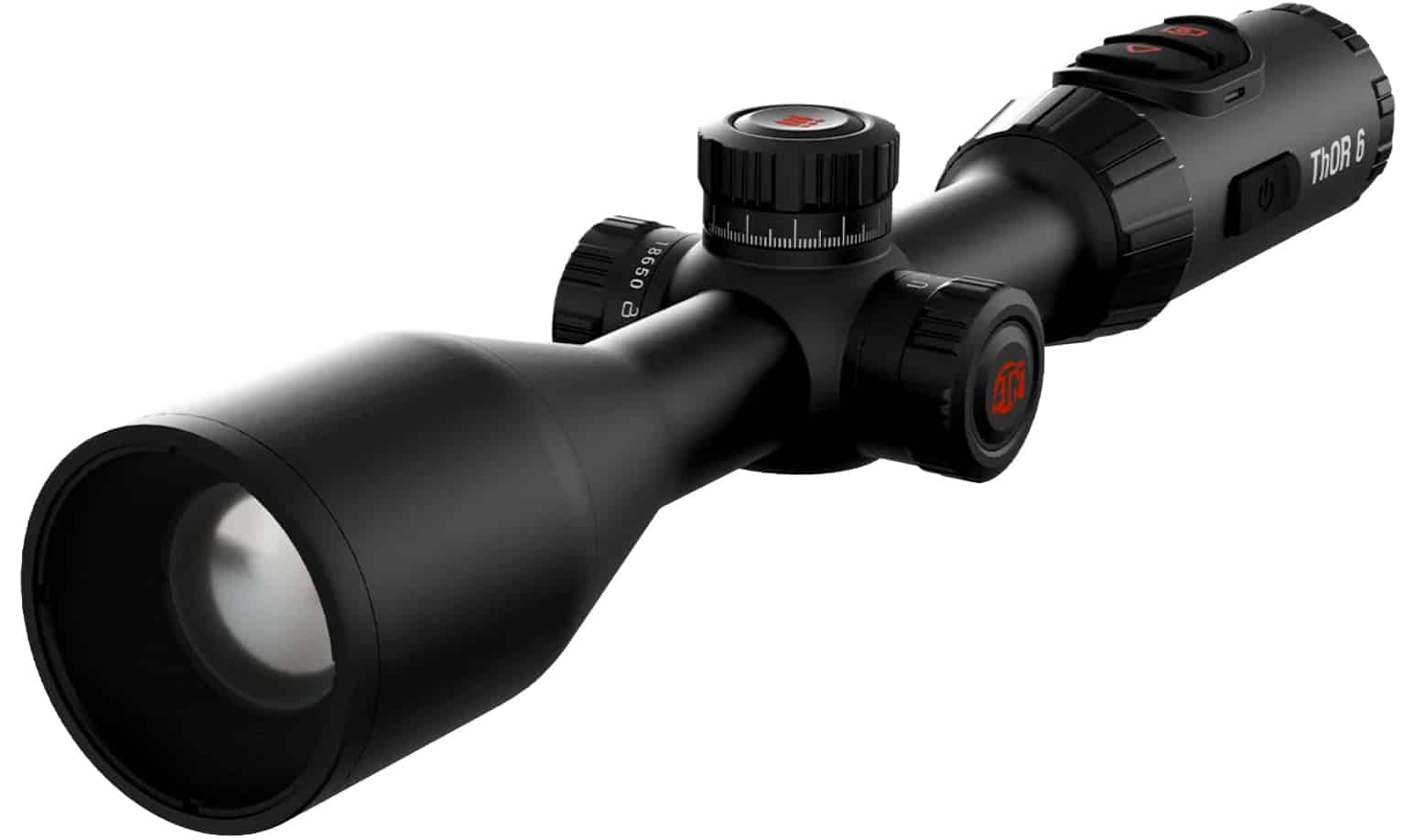

ATN ThOR 6 Elite 2-16x 640×512 Thermal Scope

The ATN ThOR 6 Elite is a thermal riflescope built around a high-sensitivity 640×512 thermal sensor and a 2–16x variable magnification range. Its 35 mm F/1.0 lens and 15 mK NETD provide strong performance in low-visibility conditions such as darkness, fog, or dense cover. The scope integrates recording, a Wi‑Fi hotspot, and onboard sensors for data capture, tracking, and system customization. Magnesium-alloy construction and an IP67 rating are designed to withstand demanding field environments.

Key Specifications

• The magnification range is 2–16x for flexible observation and engagement distances.
• The thermal sensor resolution is 640×512 for detailed thermal imaging.
• The detector uses a 12 µm VOx uncooled focal plane array design.
• Thermal sensitivity (NETD) is 15 mK to detect subtle temperature differences.
• The lens is 35 mm, F/1.0 to maximize thermal collection and imaging performance.
• The field of view measures 12.52° × 9.41°.
• The sensor refresh rate is 50 Hz for smooth thermal imaging.
• The display resolution is a 1920×1080 OLED for clear on-board viewing.
• Power is supplied by 1 internal and 1 replaceable 18650 cell with approximately 9 hours of run time.
• The unit weighs 830 g / 1.83 lbs and mounts to 30 mm rings (not included).

With integrated recording, wireless connectivity, and advanced image processing, the ThOR 6 Elite is engineered for disciplined users who need reliable thermal performance and data capture in the field. Its combination of sensitivity, variable magnification, and rugged construction makes it a practical choice for extended observation, documentation, and situational awareness tasks.
