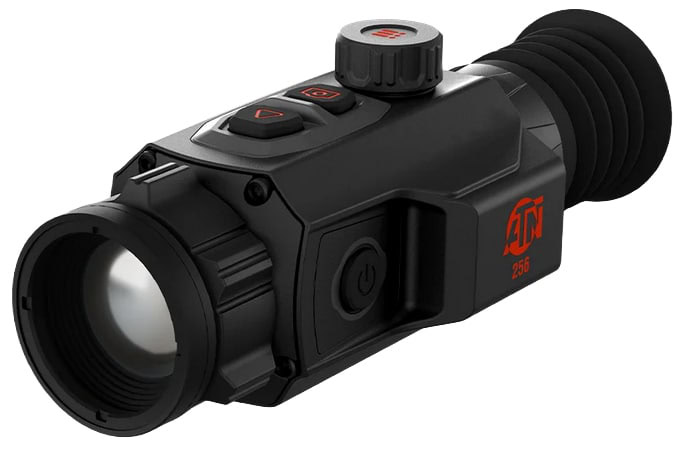

ATN ThOR 6 Mini 3.5-28x 256×192 Thermal Scope

The ATN ThOR 6 Mini is a compact thermal riflescope designed for versatile field use. It pairs a 12 µm VOx uncooled thermal core with a 0.32-inch OLED display to present thermal imagery suitable for observation and precision aiming across varied conditions. The unit includes onboard recording, Wi‑Fi hotspot capability, and IP67 weatherproofing for reliable performance outdoors.

Key Specifications

• Sensor resolution is 256×192.
• Magnification range is 3.5-28x.
• Lens (objective) is 25 mm with an f/1.0 aperture listed in manufacturer data.
• Thermal sensitivity (NETD) is ≤20 mK for the 256×192 configuration.
• Refresh/frame rate is 50 Hz.
• Display resolution is a 0.32-inch OLED at 800×600 pixels.
• Digital zoom options are 1×, 2×, 4×, and 8× with step and smooth zoom modes.
• Battery configuration is 1 × 18650 rechargeable (replaceable) and supports external USB Type‑C power.
• Internal storage for recorded media is 64 GB, with video/audio recording and Recoil Activated Video (RAV).
• Ingress protection is certified as IP67.

This ThOR 6 Mini model offers a balance of compact dimensions and advanced thermal imaging features for users who need reliable detection and documentation capabilities. Its combination of a 12 µm VOx core, multiple digital zoom levels, onboard storage and networking features makes it suitable for observation and long-range spotting tasks where electronic recording and environmental resilience are priorities.
