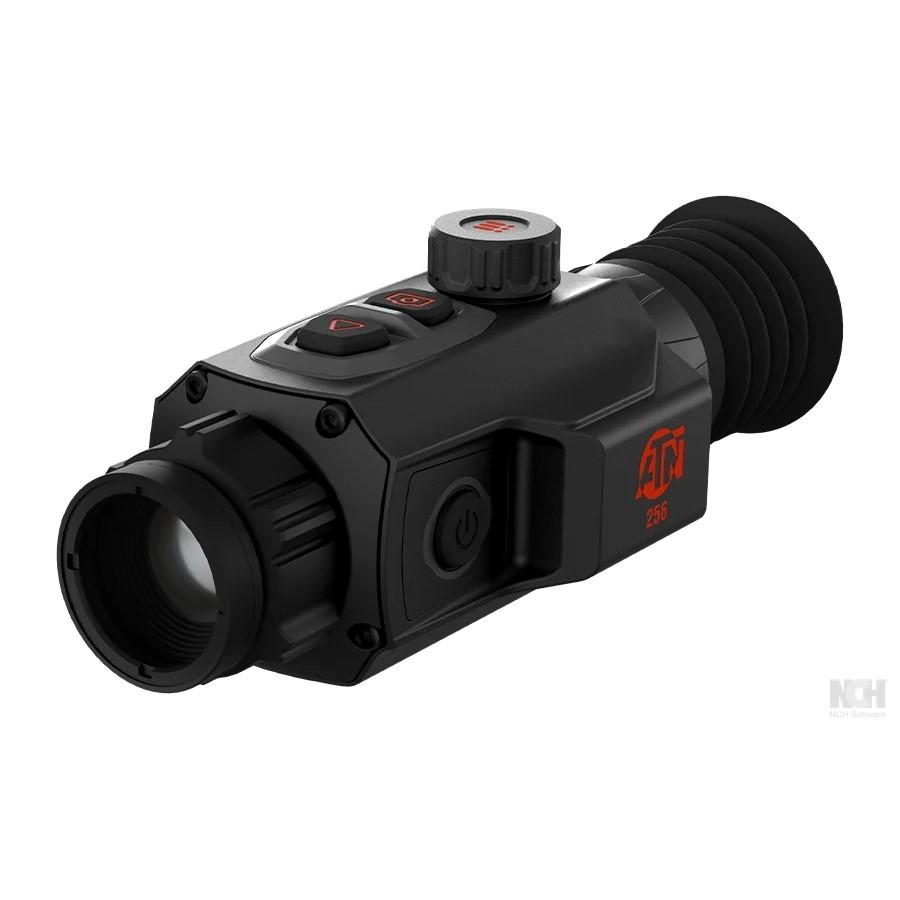

ATN ThOR 6 Mini 2-16x 256×192 Thermal

The ATN ThOR 6 Mini is a compact thermal riflescope designed for precision observation and low-light detection. It pairs a 12 µm VOx uncooled focal plane array with a 15 mm lens and an OLED display to present thermal imagery and onboard recording features. Built for field use, the unit includes Wi‑Fi hotspot capability, onboard storage, and IP67 weatherproofing.

Key Specifications

• The magnification range is 2-16x for adaptable framing and target identification.
• The sensor resolution is 256x192 for this configuration of the ThOR 6 Mini.
• The detector uses a 12 µm VOx uncooled focal plane array.
• The refresh rate is 50 Hz for smooth thermal imaging.
• The objective lens is 15 mm, F/1.0 to deliver the stated optical performance.
• The display is a 0.32-inch OLED at 800×600 resolution on the 256×192 model.
• The digital zoom options include 1×, 2×, 4×, and 8× selectable zoom levels.
• Power is provided by 1× 18650 rechargeable battery (replaceable) and USB Type-C external power support.
• Internal storage for recordings and media is 64 GB.
• The unit carries an IP67 ingress protection rating for water and dust resistance.

The ThOR 6 Mini balances compact size and advanced thermal imaging features for utility across observation, pest control, and low-light fieldwork. Its combination of a VOx detector, stepped/smooth digital zoom, onboard recording, and rugged IP67 construction makes it a capable tool for users who require reliable thermal detection and straightforward ergonomics in a compact package.
