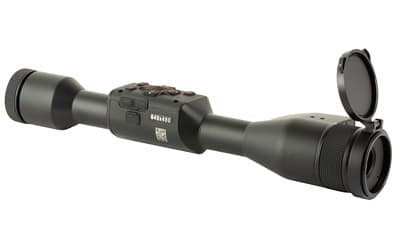

ATN Thor 5 LRF 2-16x 640×480 12 Micron Thermal Scope

The ATN Thor 5 LRF is a Gen 5 thermal rifle scope designed to provide thermal imaging and integrated rangefinding for a variety of field applications. It pairs a 640x480 thermal sensor at 12 micron pixel pitch with a quad-core processor and an OLED microdisplay for clear imaging in low-light and no-light conditions. The scope includes digital features such as RAV (Recoil Activated Video), an onboard ballistic calculator and Wi‑Fi/Bluetooth connectivity to support modern workflows.

Key Specifications

• The magnification range is 2-16x.
• The thermal resolution is 640x480 with a 12 Micron pixel pitch running at 60 fps.
• The objective lens size is 25 mm.
• The optical tube/standard mount size is 30 mm.
• The device uses an ATN Gen 5 quad-core thermal core.
• The microdisplay is an OLED 1024x768 unit for the eyepiece.
• Battery type is Li-ion with a rated runtime of 10+ hrs.
• Includes a built-in laser rangefinder (LRF).
• Human detection/recognition/identification ranges are listed as 1250 yd / 560 yd / 330 yd respectively.
• Video recording supports 1280x720 at 60 fps and the unit supports Wi‑Fi streaming and RAV.

With a combination of high-resolution thermal imaging, integrated rangefinding and onboard ballistic tools, the Thor 5 LRF is built for informed, practical use in low-light and no-light conditions. Its Gen 5 sensor, OLED microdisplay and long battery life make it a capable choice for precision observation, range estimation and field deployment where reliable electronic sighting and data capture are required.
