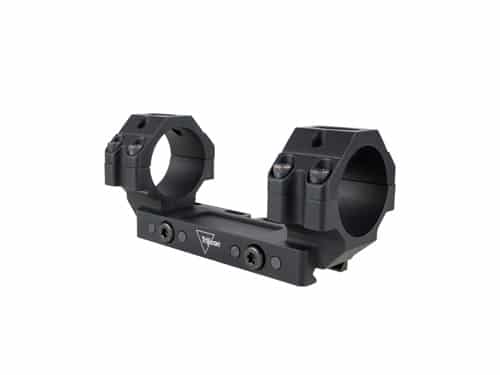

Trijicon Bolt Action Mount 34mm, 1.125″ 20 MOA

The Trijicon Bolt Action Mount places a 34mm optic low over the rail to suit hunting and long-range precision rifle applications. It is constructed from Mil‑Spec drop test rated 6061-T6 aluminum with a matte black anodized finish and a flush mounting bolt configuration for a streamlined profile. The mount provides low weight, a low profile, and engineered return-to-zero performance while remaining compatible with Mil‑Spec and NATO Picatinny rails.

Key Specifications

• The tube size is 34mm.
• The distance from the top of the mounting rail to the optical axis is 1.125 inches (28.58 mm).
• The mount fits objective lenses up to 44mm.
• The mount incorporates a 20 MOA cant.
• The housing material is 6061-T6 aluminum.
• The finish is matte black anodized.
• The overall length is 4.74 inches (120.4 mm).
• The width measures 1.95 inches (49.53 mm).
• The rail torque specification is 30–38 in·lbs.
• The ring cap torque specification is 14–16 in·lbs.

Purpose-built for variable-power optics, this lightweight, low-profile mount delivers durable, repeatable zero and practical compatibility for field and range setups where secure optic placement matters.
