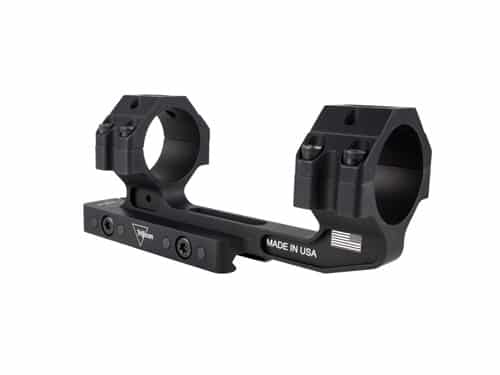

Trijicon Cantilever Mount 34mm Tube 1.535in Matte Black

The Trijicon Cantilever Mount (AC22052) is a one-piece cantilever scope mount designed for 34 mm tubes. It is constructed from Mil‑Spec drop-test rated 6061‑T6 aluminum with a matte black anodized finish and mounts to any Mil‑Spec or NATO Picatinny rail. The mount positions variable-power optics with a 1.535" height above the rail and accommodates objective lenses up to 56 mm for clearance and accessory compatibility.

Key Specifications

• The tube size is 34 mm.
• The housing material is 6061-T6 aluminum.
• The finish is matte black anodized.
• The overall length is 6.1 in (154.94 mm).
• The overall width is 1.95 in (49.53 mm).
• The height from top of mounting rail to optical axis is 1.535 in (38.99 mm).
• It fits objective lenses up to 56 mm.
• The mount type is Mil‑Spec/NATO Picatinny rail.
• Rings included: Yes.
• The torque specification for the rail is 30–38 in-lbs and for the ring caps is 14–16 in-lbs.

This cantilever mount provides a low-profile, lightweight platform that preserves return-to-zero performance across Picatinny-equipped platforms. Its clearance and height position make it well suited for hunting and precision rifle setups where optic placement and accessory compatibility are important.
