Hawke Airmax 3-9x40mm 1″ Tube AMX Reticle

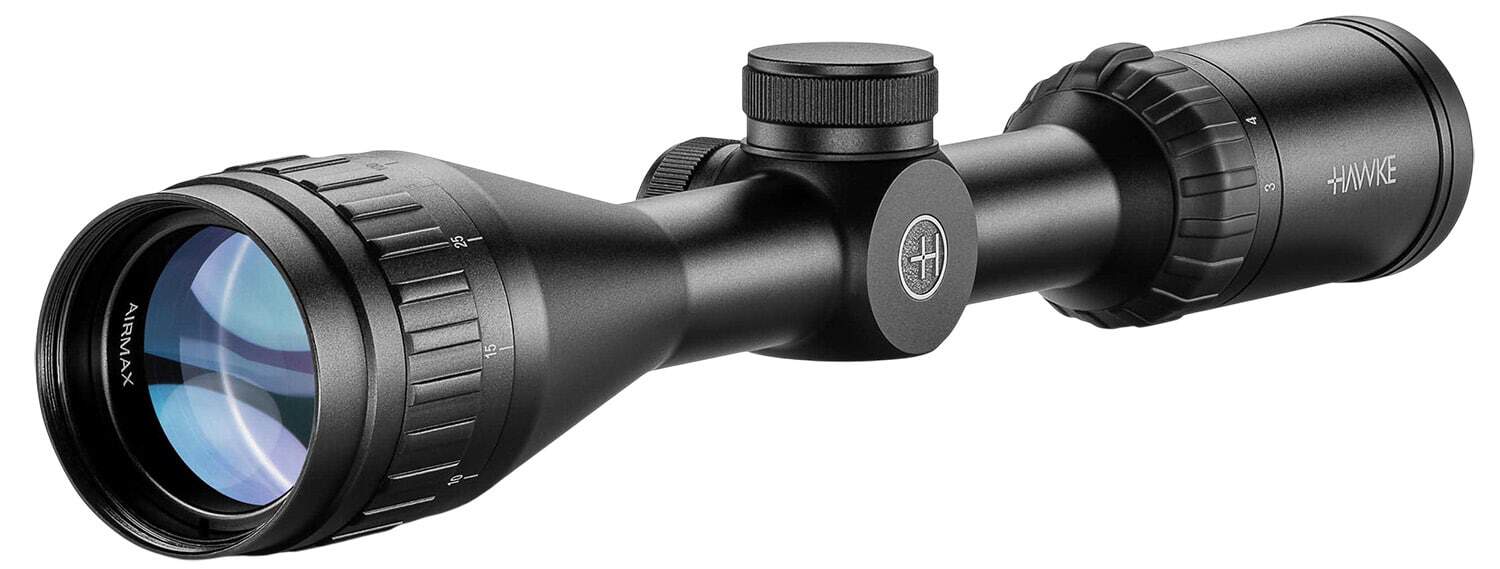

The Hawke Airmax 3-9x40mm riflescope features a glass-etched AMX reticle and a 1" tube, designed to provide multiple aim points for trajectories with significant drop. The AMX reticle family is based on the spacing of a 10x Mil Dot and offers refined holdover and bracketing options. This configuration is especially applicable to airgun shooters and precision small-bore target applications where trajectory compensation is required.

Key Specifications

• The scope weighs 18.30 oz.
• The tube diameter is 1".
• Eye relief is 3.50".
• Field of view is 37.20 - 13.60ft @ 100yds.
• Overall length is 12.20".
• Magnification range is 3-9x.
• The objective lens measures 40mm.
• Optics are Fully Multi Coated.
• Parallax is Adjustable.
• The riflescope uses an AMX glass-etched reticle.

The AMX reticle provides multiple aim points with half mil spacing on the lower post and horizontal bars calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing, while hollow posts are segmented for bracketing. Combined with fully multi-coated optics and adjustable parallax, this scope is built to help shooters acquire targets and compensate for trajectory in precision airgun and small-bore applications. Its variable magnification and compact profile make it a practical option for range work and field use where clear optics and flexible aiming solutions are required.
