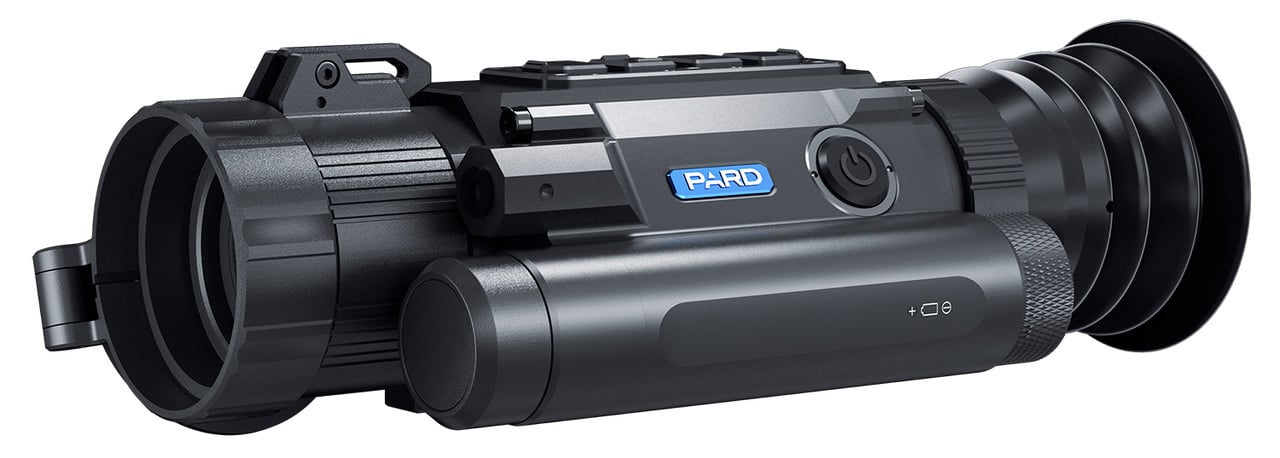

PARD Ocelot 256 OC2-19 Thermal Scope

The PARD OC2-19 Ocelot 256 is a compact thermal sight intended for observation, detection and situational awareness in low-visibility conditions. It uses an uncooled VOx thermal sensor to deliver thermal images for outdoor use and field observation. The unit combines optical magnification with selectable digital zoom steps and on-board recording to support documentation and review of observations. Rugged construction and IP67 rating provide ingress protection for extended outdoor deployment.

Key Specifications

• The sensor resolution is 256×192 pixels for core thermal imaging.
• The pixel size is 12 µm for each sensor element.
• The thermal sensitivity is 25 mK NETD for low-contrast detection.
• The frame rate is 50 Hz for smooth image updates.
• The optical system provides a variable magnification of 3.2x–25.6x.
• Digital zoom options include 2x/4x/6x/8x steps.
• The focus range is 3 meters to infinity to accommodate close and long-range observation.
• Human detection distance is specified as 900 meters in provided material.
• The display is a 1024×768 OLED for image presentation and menus.
• Onboard storage is 32 GB (built-in EMMC) for photo and video capture.

Compact, feature-rich and ergonomically designed, the Ocelot 256 balances portability with imaging capability. Its combination of a high-sensitivity sensor, multiple magnification options and built-in recording makes it suitable for responsible outdoor observation and documentation where thermal imaging is appropriate.
