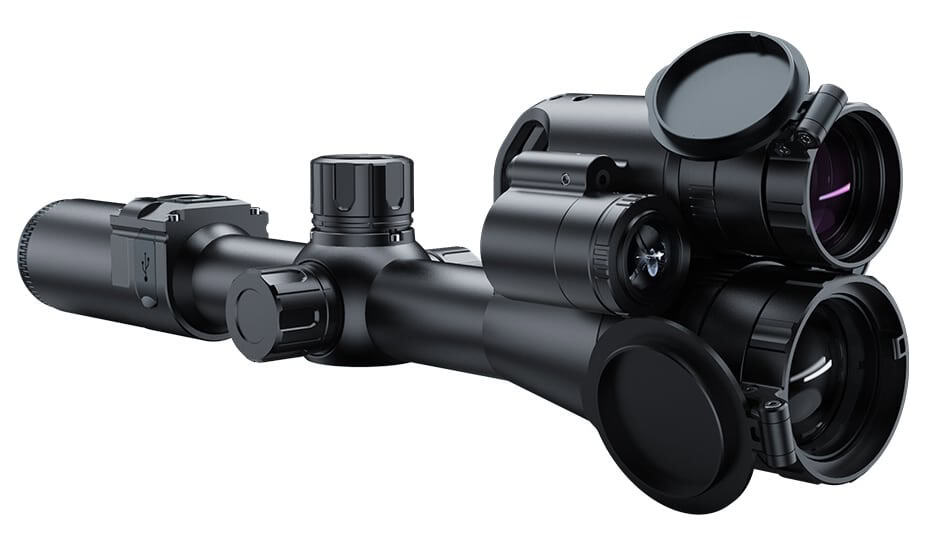

PARD TD62 Multi-Spectral 45mm/70mm Scope w/ LRF

The PARD TD62-70 is a multi-spectral thermal and night-vision scope designed for extended observation and target detection across varied light conditions. It combines an uncooled VOx thermal sensor with a high-resolution visible CMOS sensor and an integrated laser rangefinder for range estimation. The unit includes on-board recording, an IPS display, and IP67 protection for use in demanding environments.

Key Specifications

• Classification is Multi-spectral thermal/night vision scope.
• Thermal sensor type is an uncooled VOx IR sensor.
• Thermal resolution is 640 × 512 pixels.
• Thermal objective lens is 45 mm.
• Thermal frame rate is 50 Hz.
• Visible sensor resolution is 2560 × 1440 pixels.
• Visible objective lens is 70 mm.
• Display is an 800 × 800 IPS panel.
• Laser rangefinder detection range is 1200 yd / 1000 m.
• Ingress protection rating is IP67.

The TD62-70 pairs multi-spectral imaging with practical field features—integrated LRF, on-board recording, and rugged aluminum-alloy construction—to support extended observation duties where reliable detection and documentation are required. Its combined thermal and visible capabilities make it suitable for long-range observation, perimeter surveillance, and situational awareness in low-light conditions.
