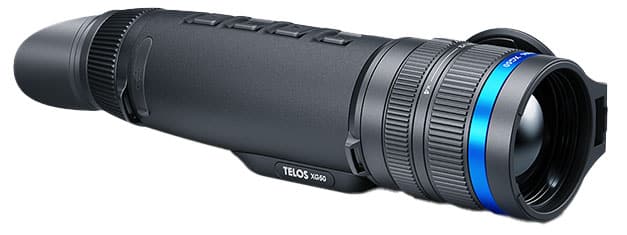

PULSAR Telos XG50 Thermal Monocular

The PULSAR Telos XG50 is a digital thermal monocular engineered for observation and situational awareness in low-light and no-light conditions. It combines an uncooled 640x480 thermal sensor with an AMOLED display and onboard recording to support extended field use. The unit features a replaceable LPS7i battery pack with USB-C power options and integrated wireless connectivity for image transfer and app integration.

Key Specifications

• The thermal sensor resolves 640x480 pixels at a 12 µm pixel pitch.
• The sensor thermal sensitivity is specified as <40 mK NETD.
• The imaging system operates at a 50 Hz frame rate.
• The optical objective is listed as F50 / 1.0.
• The field of view is given as 8.8° x 6.6° (HxV) and 15.4 x 11.5 m @ 100 m.
• Range performance is provided as a 2,300 m detection range (also represented as 2,515 yd in source materials).
• The eyepiece/display delivers a 1024x768 pixel AMOLED viewing image.
• Onboard storage is 64 GB for photo and video (.jpg / .mp4).
• Battery capacity is 6,400 mAh with an operating time of approximately 8.5 hours on the LPS7i pack.
• The unit dimensions are 238 x 72 x 62 mm with a weight of 0.66 kg (with battery).

The Telos XG50 is purpose-built for reliable observation and documentation in challenging lighting. Its high-resolution sensor, integrated recording, and extended battery life make it a flexible tool for field observation and professional use where thermal imaging and data capture are required.
