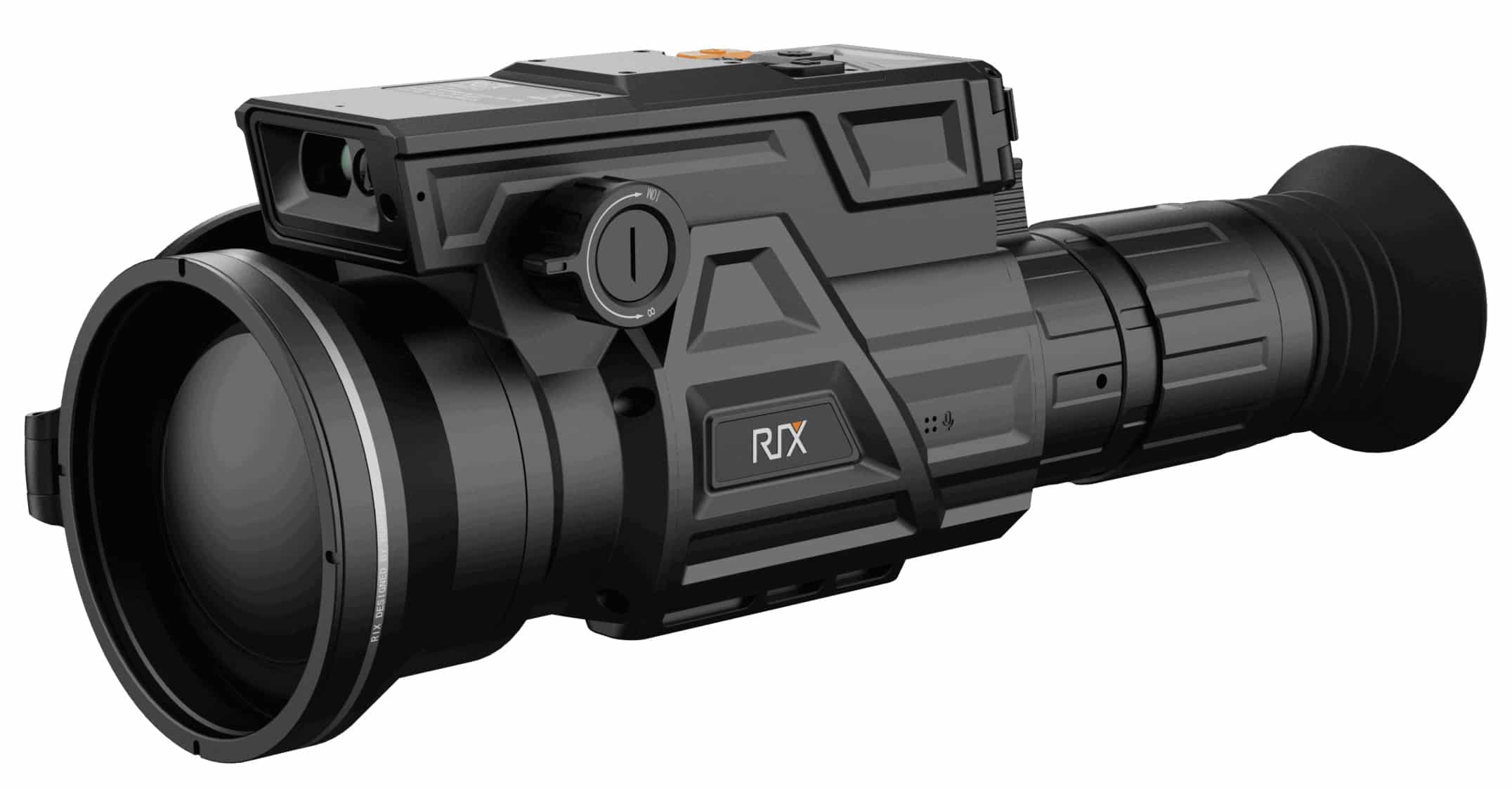

Rix Optics DBH D12 1280×1024 Thermal Scope 75mm

The Rix Optics DBH D12 is a thermal imaging riflescope designed for extended observation and low‑light field use. It pairs a high‑resolution 1280×1024 thermal sensor with a large 75mm objective and a high‑resolution OLED display for clear thermal imaging and situational awareness. The unit includes an integrated laser rangefinder and network features for image and data transfer.

Key Specifications

• The thermal sensor resolution is 1280×1024 pixels.
• The viewfinder/display resolution is 2560×2560 pixels.
• The objective lens is 75 mm F/1.0.
• The built‑in laser rangefinder has a listed maximum range of 1,312 yards.
• The stated field of view at 100 yd is 11.7° × 9.3°.
• The eyepiece provides 60 mm of eye relief.
• The unit is rated IP67 for water and dust protection.
• Onboard storage is listed as 64 GB and supports photo and video recording.
• The scope supports Wi‑Fi integration for streaming and data transfer via the Rix app.
• The power system uses 18650 rechargeable batteries.

The DBH D12 is configured for professional observation, surveillance, and field applications that require thermal imaging with an integrated rangefinder and digital recording. Its combination of a high‑resolution thermal sensor, large objective, and networked features is intended for users who need reliable imaging and data capture in varied environmental conditions.
