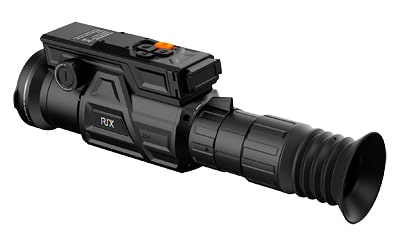

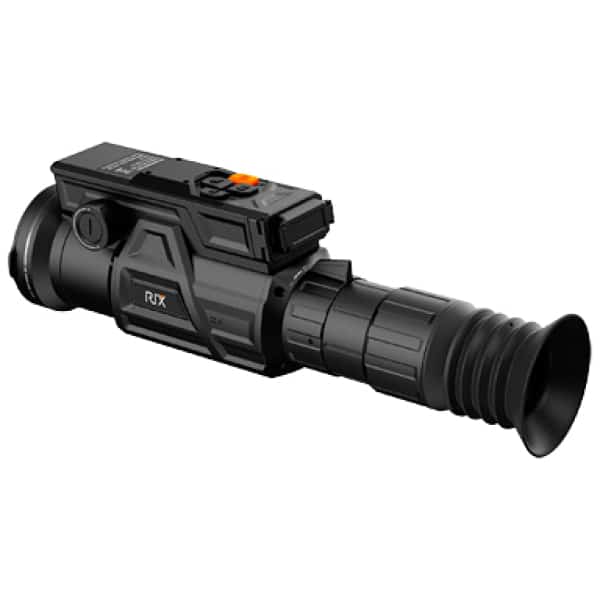

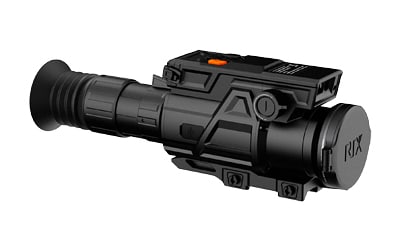

Rix Optics DBH D6 60mm Thermal Scope 640×512 60Hz

The Rix Optics DBH D6 is a thermal imaging scope engineered for extended observation and field use. It pairs a 60 mm objective with a 640 × 512 VOx thermal sensor and a high-resolution circular OLED display. Onboard features include a 905 nm laser rangefinder with a stated 1200-yard max range, Wi‑Fi and Bluetooth connectivity, onboard video/photo recording, and IP67 ingress protection. The scope is powered by two 18650 batteries and supports USB-C external power.

Key Specifications

• The sensor is a VOx uncooled thermal detector with a 640 × 512 pixel resolution.
• The pixel pitch is 12 µm.
• The sensor operates at a 60 Hz frame rate.
• The objective is a 60 mm F/1.0 germanium lens.
• The scope provides 3x optical zoom.
• The unit includes a 1–6x stepped digital zoom.
• The view is shown on a 2560 × 2560 circular OLED display.
• It features a 905 nm laser rangefinder with a stated maximum range of 1200 yards.
• The DBH D6 is powered by two 18650 batteries with a listed 3800 mAh capacity and an 8-hour operating time (manufacturer data).
• The housing is rated IP67 and the unit weighs approximately 2.9 lb.

With its combination of a large germanium objective, a high-resolution thermal sensor and a detailed OLED view, the DBH D6 is configured for extended observation tasks where detection, range measurement and digital recording matter. The integrated rangefinder, wireless connectivity and rugged IP67 construction make it suitable for disciplined field use and long sessions in variable conditions.
