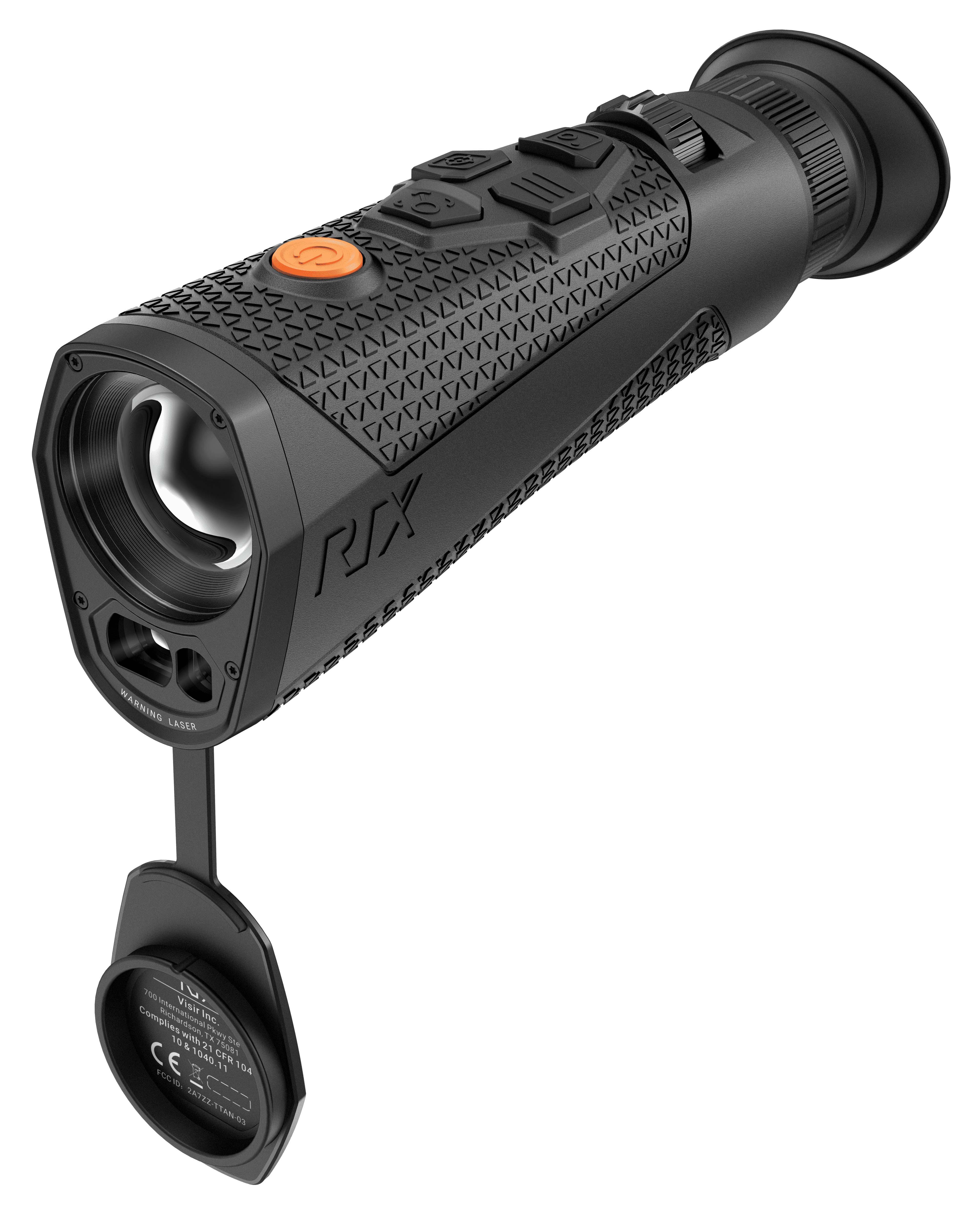

Rix Optics Titan T3 384×288 Thermal Monocular 25mm

The Rix Optics Titan T3 is a handheld thermal imaging monocular featuring a 384×288 VOx sensor and an integrated laser rangefinder. Designed for observation and range measurement, the unit supports onboard recording, Wi‑Fi connectivity and mobile app integration for environmental and ballistic inputs. The housing is rated IP67 for protection against dust and temporary immersion.

Key Specifications

• The sensor resolution is 384×288 pixels using a VOx uncooled detector.
• The objective lens measures 25 mm for the optical assembly.
• Optical magnification is 2.6x with digital zoom available 1–4x.
• The thermal frame rate operates at 50 Hz.
• The built‑in laser rangefinder measures to a maximum of 1200 m / 1312 yd with ±1 m accuracy.
• The display is a 1920×1080 OLED panel sized at 0.49 inch.
• Video and photo are recorded at 1024×720 resolution and saved in .mp4/.jpg formats to 32 GB internal memory.
• Power is supplied by a 18650 battery (listed capacity 3800 mAh) with an operating time of approximately 5 hours.
• The unit is rated IP67 for dust protection and temporary immersion.
• Physical dimensions measure 8.0 × 2.0 × 2.9 inches for handheld use.

Equipped with an integrated rangefinder, onboard recording, and smartphone connectivity via Wi‑Fi and the RIX+ app, the Titan T3 consolidates thermal detection, measurement and data capture into a single handheld package. Its combination of a high‑resolution VOx sensor, robust environmental rating and app‑assisted range and ballistic features makes it a practical choice for field observation, long‑range spotting and professional use where reliable thermal sensing and range data are required.
