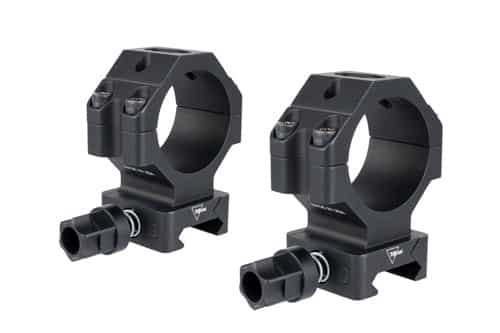

Trijicon AC22066 Q-LOC 30mm Scope Rings, 1.3″ High

The Trijicon AC22066 Q-LOC scope rings mount 30mm optics at a low 1.3" optical axis height for use on Mil-Spec/NATO Picatinny rails. Constructed from drop-test rated 6061-T6 aluminum with a matte black anodized finish, these rings use Trijicon'27s Q-LOC spring-loaded, tool-less mounting system to preserve zero. The quick-release design provides consistent retention and return-to-zero performance without the need for tools.

Key Specifications

• The tube accepts a 30mm diameter optic.
• The height from the top of the mounting rail to the optical axis is 1.3" (33.02 mm).
• The mounts are machined from 6061-T6 aluminum.
• The finish is matte black anodized.
• They fit objective lenses up to 50mm.
• The mounts are compatible with Mil-Spec/NATO Picatinny rails.
• The overall length measures 1.25 in (31.75 mm).
• The overall width measures 2.8 in (71.12 mm).
• Rail torque specification: spring tension only 12-16 in./lbs; can be tightened to 30-38 in./lbs.
• Ring cap torque specification: 14-16 in./lbs.

Engineered for low-profile mounting and reliable return-to-zero, these rings are suited to hunting and precision rifle setups where consistent optic alignment is essential. Durable construction and one-handed Q-LOC hardware simplify installation and maintenance on any platform equipped with a full Picatinny rail.
