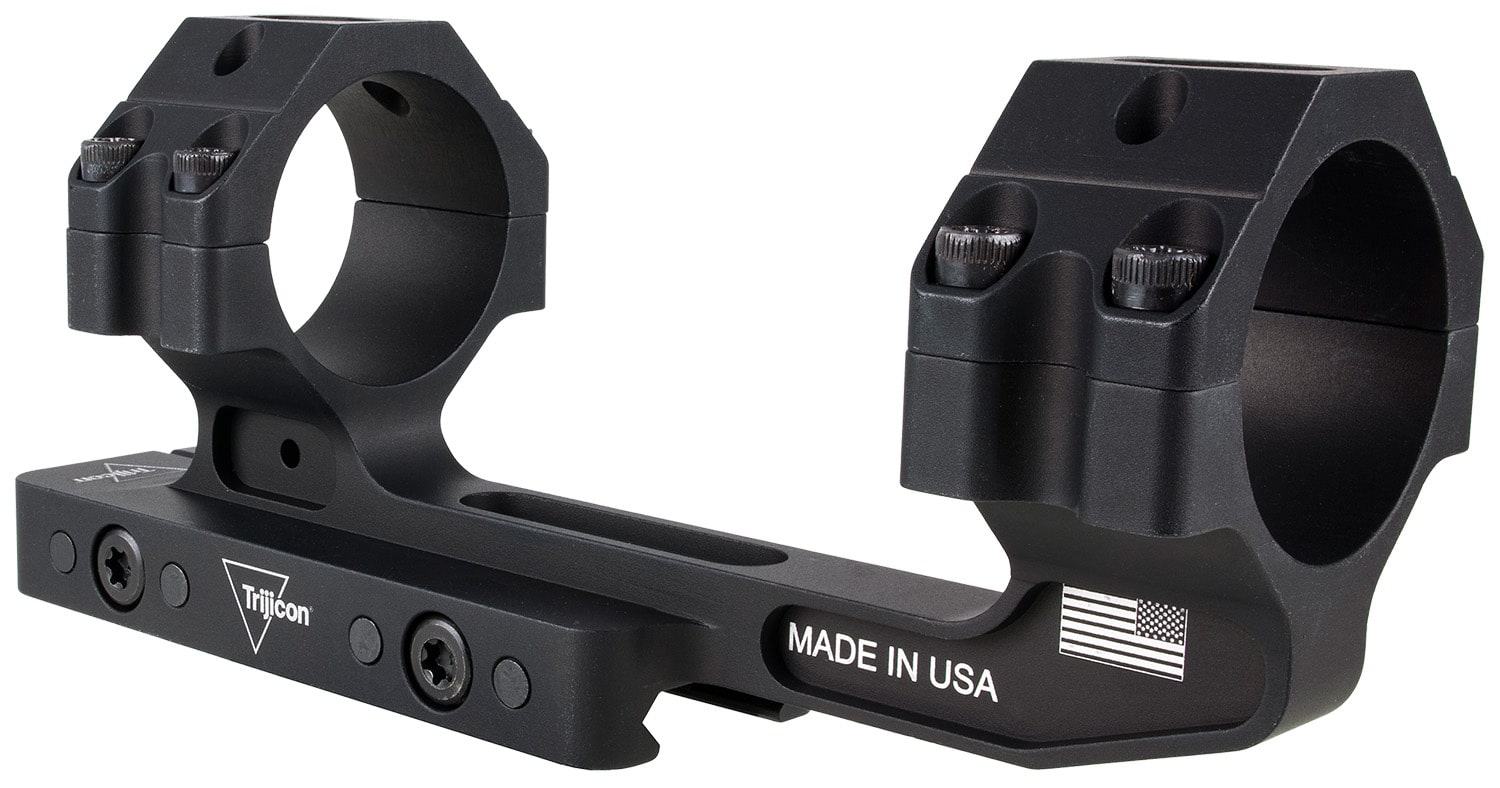

Trijicon Cantilever Mount 30mm, 1.59 in Height

The Trijicon Cantilever Mount is a sturdy, low-profile solution for mounting variable-power optics on firearms with a full Picatinny rail. It is engineered to position a 30mm tube optic low over the rail while providing reliable return-to-zero performance for hunting and long-range precision applications. The mount uses a Mil-Spec drop test rated 6061-T6 aluminum construction and a flush mounting bolt configuration for a clean side profile.

Key Specifications

• The tube size is 30mm.
• The distance from the top of the mounting rail to the optical axis is 1.59 inches.
• The mount is constructed from 6061-T6 aluminum.
• The finish is matte black anodized.
• The mount is compatible with Mil-Spec/NATO Picatinny rails.
• It fits objective lenses up to 56mm.
• The overall length is 6.10 inches.
• Rings are included: Yes.
• The torque specification for the rail fasteners is 30–38 in-lbs.
• The torque specification for the ring caps is 14–16 in-lbs.

Designed for users who need a reliable, low-profile mounting solution, this Trijicon cantilever mount balances weight, strength, and repeatable zero. It is suitable for attaching variable-power optics on hunting and precision rifle platforms while maintaining a clean optic-to-rail alignment and durable construction.
