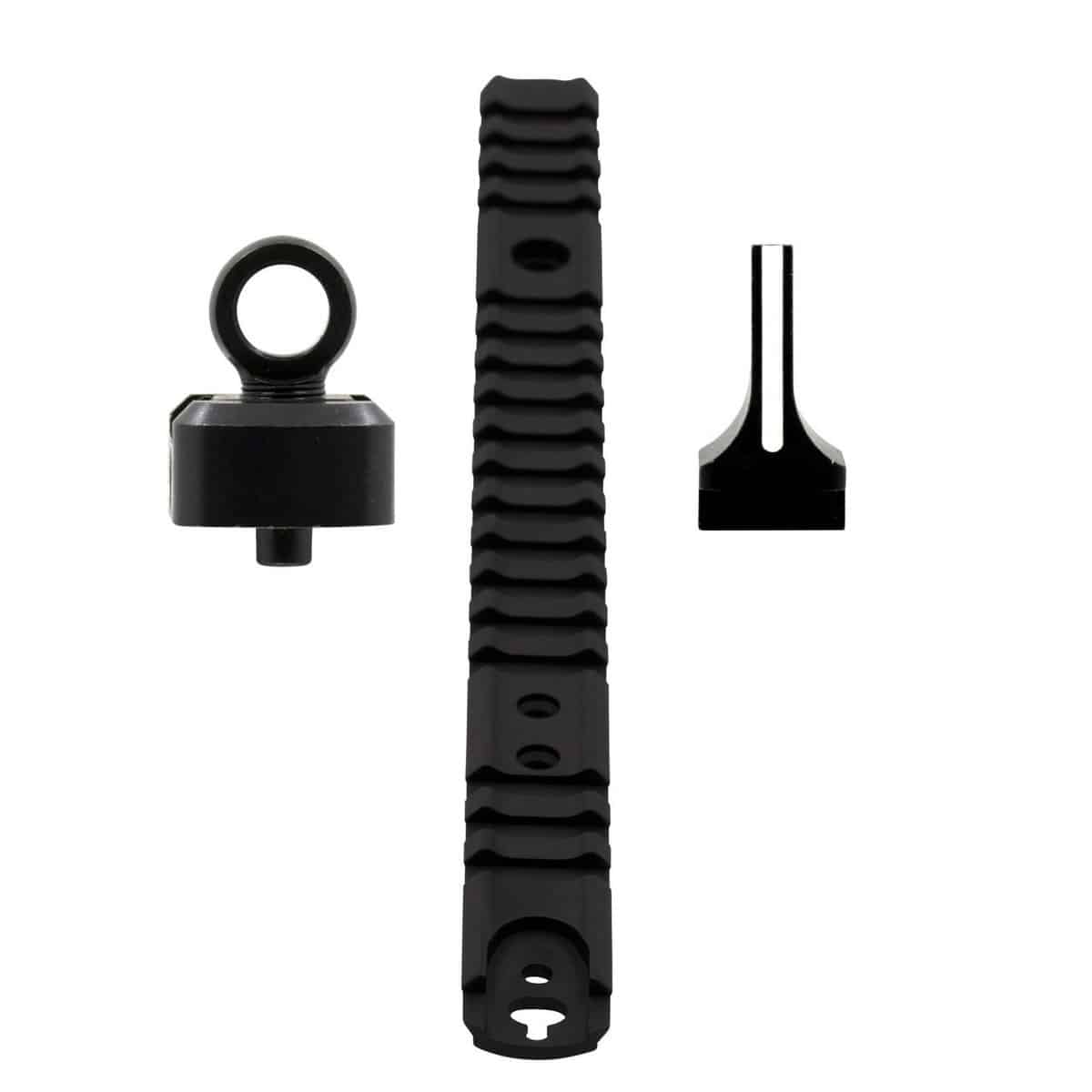

XS Sights Lever Rail Ghost Ring WS – Marlin 1894 (Dovetail Front)

The XS Lever Rail Ghost Ring WS adapts Marlin 1894 rifles with a dovetail front to accept optics and provides a rugged all-steel ghost-ring backup sighting solution. The lightweight anodized aluminum rail is machined to Picatinny specifications for mounting directly over the receiver or forward for scout scopes or red dot sights. The adjustable rear ghost ring includes two aperture sizes and the White Stripe front sight replaces the factory blade for improved front-post contrast in varied lighting. Installation requires removal of the factory rear sight and may require re-zeroing.

Key Specifications

• Compatible with Marlin 1894 (dovetail front) receivers.
• Features a rail machined to Picatinny specifications for optic mounting.
• Rear ghost ring is adjustable for windage and elevation and includes apertures of .230" and .191" inside diameter.
• Includes the XS White Stripe (WS) front sight with a painted white stripe face for contrast.
• Rail is constructed from anodized aluminum and the front sight body is blued steel.
• Installation requires removal of the factory rear sight and possible zero adjustments.
• All mounting screws torque to 20 INCH-pounds; over-torquing can fracture or break screws.
• Manufacturer-listed weight is 0.37.
• Manufacturer-listed shipping weight is 0.37.
• Does not fit Marlins with an octagon barrel.

Whether fitting a scout-style optic or a compact red dot, the Lever Rail Ghost Ring WS provides flexible mounting positions and a dependable iron-sight backup. Its Picatinny-spec rail and high-contrast White Stripe front sight deliver a clear sight picture while the all-steel ghost ring offers straightforward, durable functionality. This kit is a practical upgrade for shooters seeking a clean optic mount solution that preserves a robust iron-sight option for everyday use.
